A NEW STRIPPED-BACK TOURING ICONA bare essentials bike with all the modern capabilities for the Touring purist. Built to make it your own.
Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.
Milwaukee-Eight® V-Twin Engine
Reflex™ Linked Brembo® Brakes with Standard ABS
Solo Touring Seat
BATWING FAIRING & MID-HEIGHT WINDSHIELD
EMULSION-TECHNOLOGY REAR SHOCK ABSORBERS
49MM FORKS WITH DUAL BENDING VALVE SUSPENSION
- Milwaukee-Eight® ENGINE :
- Engine 2 Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111 mm
- Displacement 1,746 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers
- Length 2,400 mm
- Seat Height, Unladen 680 mm
- Ground Clearance 120 mm
- Rake (steering head) (deg) 26
- Trail 170 mm
- Wheelbase 1,625 mm
- Tyres, Front Specification BW 130/80B17 65H
- Tyres, Rear Specification BW 180/65B16 81H
- Fuel Capacity 22.7 l
- Oil Capacity (w/filter) 4.9 l
- Weight, As Shipped 354 kg
- Weight, In Running Order 372 kg
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 150 Nm
- Engine Torque (rpm) 3,250
- Lean Angle, Right (deg.) 31
- Lean Angle, Left (deg.) 29
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.593
- Gear Ratios (overall) 2nd 6.65
- Gear Ratios (overall) 3rd 4.938
- Gear Ratios (overall) 4th 4
- Gear Ratios (overall) 5th 3.407
- Gear Ratios (overall) 6th 2.875
- Wheels, Front Type 7 Impeller Cast Aluminum
- Wheels, Rear Type Impeller Cast Aluminum
- Brakes, Caliper Type 32 mm, 4-piston fixed front and rear
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxiliary lighting, cruise, ABS, immobiliser, low battery voltage, low fuel warning.
- Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
- Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional wheels may vary by country and region.
- Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.

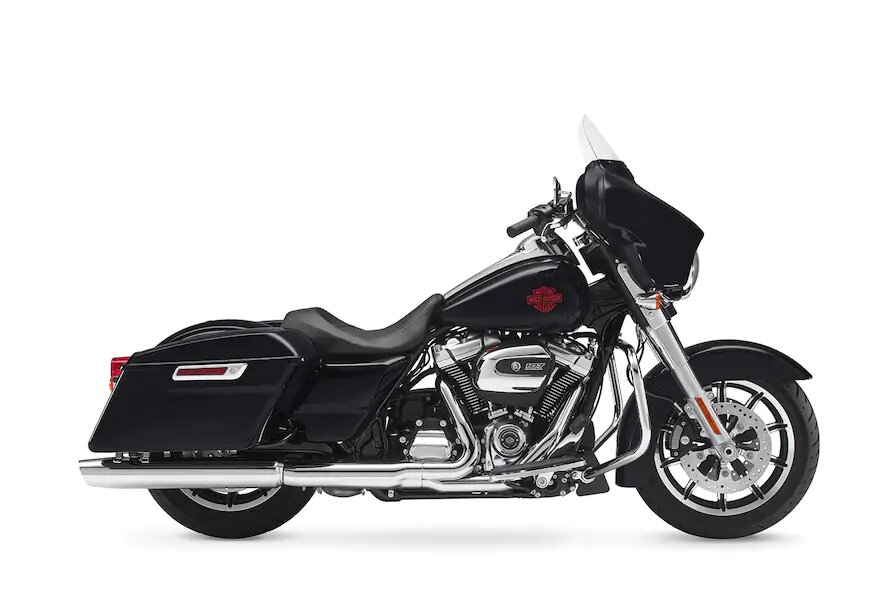

2020 Harley Davidson Touring Electra Glide Standard
