NOW YOU CAN REALLY HAVE IT ALLThe all-new CVO™ Tri Glide® is a custom trike that's loaded with more premium touring features than you could ever imagine.
Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.
Milwaukee-Eight® 117 Engine
Reflex™ Defensive Rider Systems
Premium paints and finishes
BOOM!™ Box GTS Infotainment System
High-Performance Touring Suspension
Tomahawk™Contrast Cut Wheels
Premium Heated Seats
Custom Touring Style
- Milwaukee-Eight® ENGINE :
- Engine 2 Twin-Cooled™ Milwaukee-Eight™ 117
- Bore 104 mm
- Stroke 114 mm
- Displacement 1,923 cc
- Compression Ratio 10.2:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, 2-1-2 dual exhaust with slash cut mufflers
- Length 2,670 mm
- Seat Height, Unladen 715 mm
- Ground Clearance 130 mm
- Rake (steering head) (deg) 26
- Trail 100.1 mm
- Wheelbase 1,670 mm
- Tyres, Front Specification 130/60B19 M/C 61H
- Tyres, Rear Specification P215/45R18 83T
- Fuel Capacity 22.7 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 563 kg
- Weight, In Running Order 577 kg
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 168 Nm
- Engine Torque (rpm) 3,500
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 10.534
- Gear Ratios (overall) 2nd 7.302
- Gear Ratios (overall) 3rd 5.423
- Gear Ratios (overall) 4th 4.392
- Gear Ratios (overall) 5th 3.741
- Gear Ratios (overall) 6th 3.157
- Wheels, Optional Style Type Charcoal Grey with Contrast Satin Tomahawk
- Wheels, Front Type7 Gloss Black and Contrast Clear Tomahawk
- Wheels, Rear Type Gloss Black and Contrast Clear Tomahawk
- Brakes, Caliper Type Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxiliary lighting, cruise, ABS, immobiliser, low battery voltage, low fuel warning.
- Gauges Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator, and tire pressure.
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria.
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.

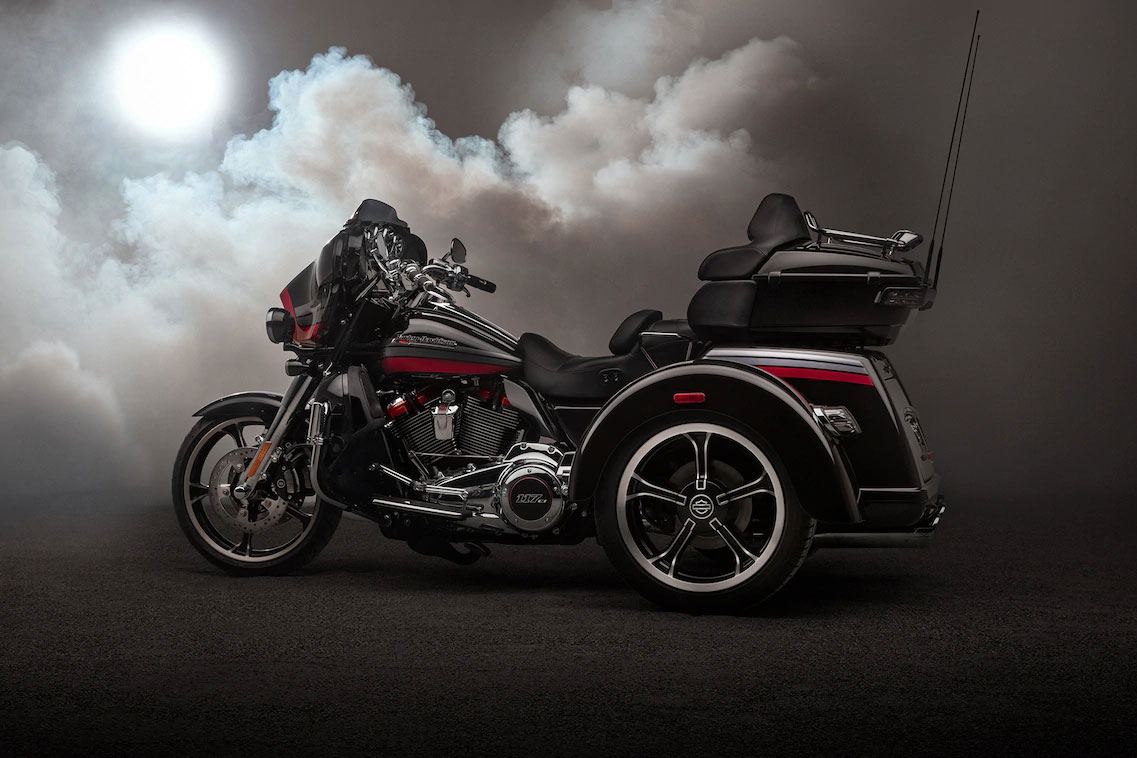

2020 Harley Davidson CVO Tri Glide
Black Stardust - Magnetic Gray - Wicked Red
Blizzard White Pearl - Lightning Silver - Storm Cloud
